Settings reference

Settings reference

Modules dialog

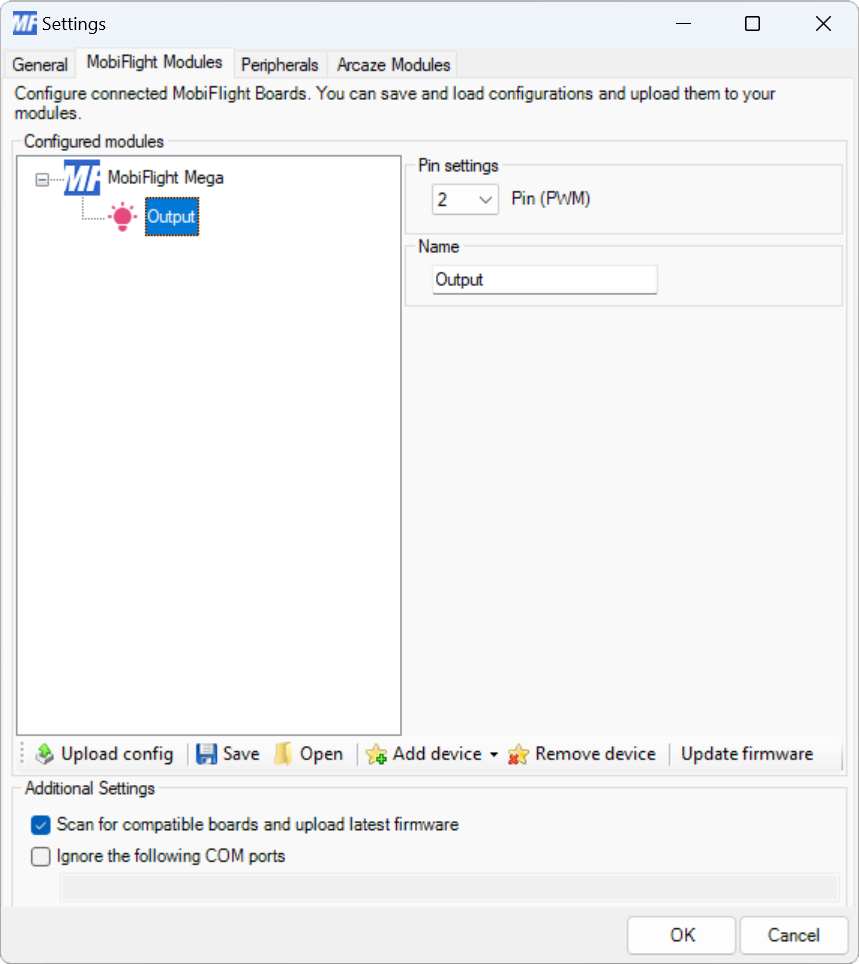

Screenshot of the Modules dialog with the LED configuration showing.
SettingDescription
PinThe board pin connected to the LED. All digital and analog pins are supported.
NameThe name for the LED. Displayed in the output configuration dialog to identify the LED when mapping the simulator output to the LED.

Output display configuration

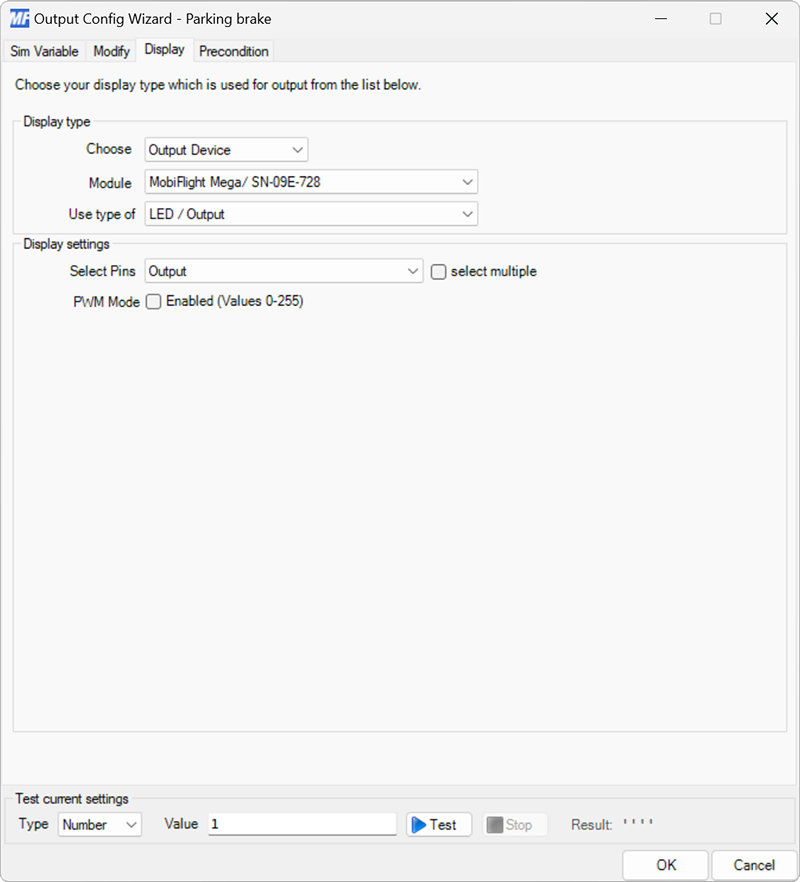

Screenshot of the Display tab with the LED output type selected for a single output.
SettingDescription
Select PinsThe LED device configured in the Modules dialog to display the value on.

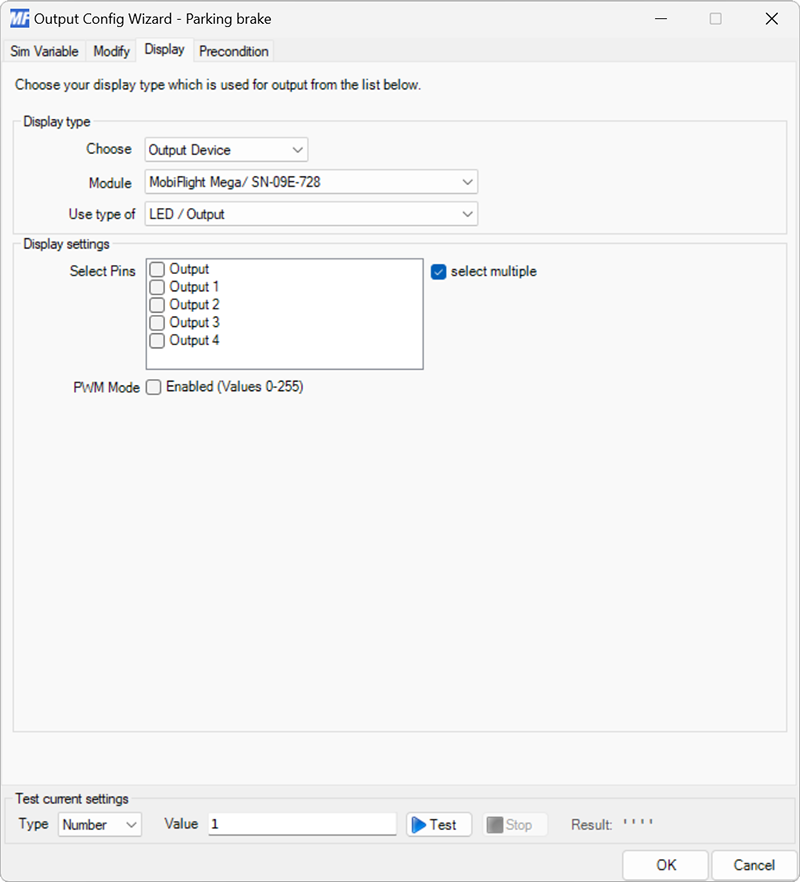

Select multipleWhen checked, enables selecting multiple LED devices to display the value.
PWM ModeWhen checked, sends values between 0–255 to the output pin instead of 0 or 1. When the LED is connected to a PWM capable pin on the board this dims the LED based on the value.
